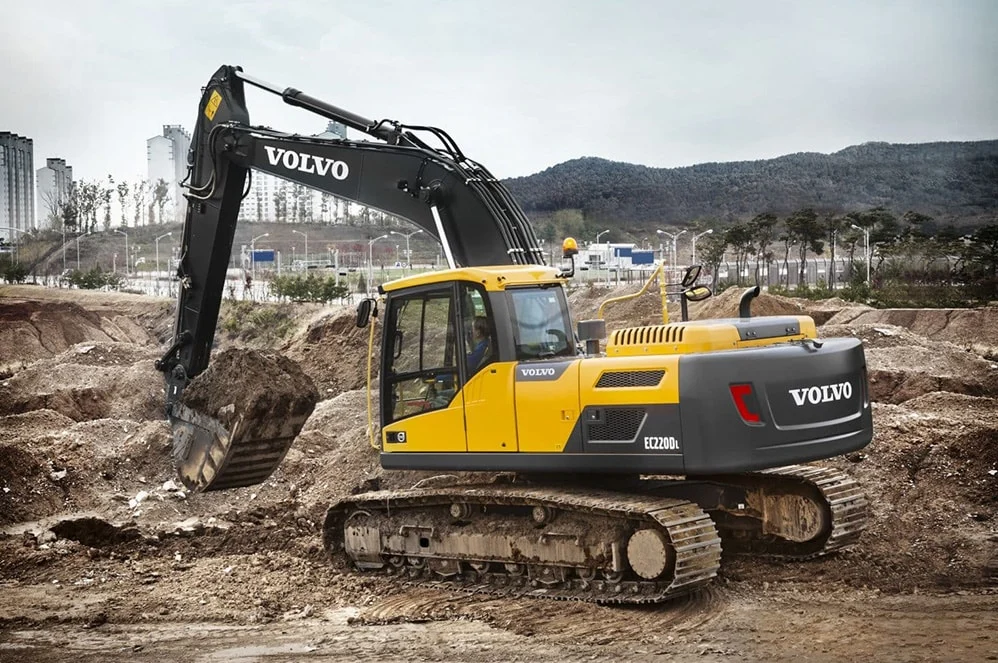

Volvo 220 Excavator
The Volvo 220 Excavator is a powerful and reliable heavy-duty machine designed for demanding construction, excavation, earthmoving, and infrastructure projects. Built for dependable performance, the Volvo 220 combines strong digging capability, efficient hydraulic operation, and a durable design to deliver consistent productivity on challenging job sites.
Efficiency that lasts
Get the most out of your excavator in any application. The EC220 crawler excavator is equipped with a range of features to ensure a superior performance, shift after shift. Designed with Volvo’s extensive experience and expertise, this robust machine delivers ultimate productivity and efficient operation in a wide variety of tasks.
Stage IIIA / Tier 3
Operating Weight
22,338 kg
Engine Power
123 kW
Bucket Capacity
1 - 1.22 m³
Technical specifications for EC220
| Specification | Value |
|---|---|
| Operating Weight | 22,338 kg |
| Gross Power | 123 kW |
| Bucket Capacity | 1 – 1.22 m³ |
| Lifting Capacity, Along Undercarriage | 9,430 kg |
| …at Reach / Height | 4.5 / 1.5 m |
| Max. Digging Reach | 9,410 mm |
| Max. Digging Depth | 6,360 mm |
| Breakout Force, SAE J1179 (Normal) | 120 kN |
| Breakout Force, SAE J1179 (Boost) | 127 kN |
| Tear Out Force, SAE J1179 (Normal) | 111 kN |
| Tear Out Force, SAE J1179 (Boost) | 118 kN |
| Overall Width | 2,800 mm |
| Tail Swing Radius | 2,850 mm |
| Specification | Value |
|---|---|
| Operating Weight | 49,247 lbs |
| Gross Power | 167 hp (met) |
| Bucket Capacity | 1.3 – 1.6 yd³ |
| Lifting Capacity, Along Undercarriage | 20,789 lbs |
| …at Reach / Height | 13 / 5 ft |
| Max. Digging Reach | 30′ 2″ |
| Max. Digging Depth | 20′ 10″ |
| Breakout Force, SAE J1179 (Normal) | 26,977 lbf |
| Breakout Force, SAE J1179 (Boost) | 28,550 lbf |
| Tear Out Force, SAE J1179 (Normal) | 24,954 lbf |
| Tear Out Force, SAE J1179 (Boost) | 26,527 lbf |
| Overall Width | 9′ 2″ |
| Tail Swing Radius | 9′ 4″ |
