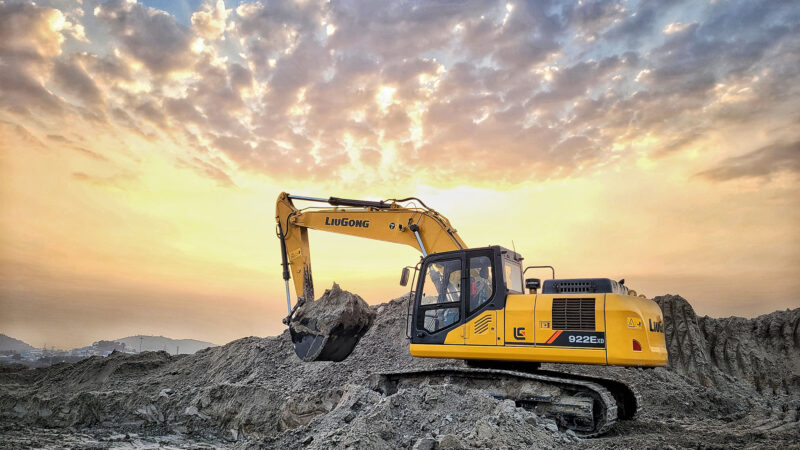

LiuGong 922E Excavator
The LiuGong 922E Excavator is a powerful and dependable heavy-duty machine designed for demanding construction, excavation, earthmoving, and infrastructure projects. Built with a robust structure and efficient hydraulic performance, the 922E provides strong digging capability, smooth operation, and reliable productivity across challenging job-site conditions.
The E-Series excavators are engineered to deliver exceptional reliability, operator comfort, and maximum uptime. Their structures are built using thick, high-tensile, stress-relieved steel plates for enhanced strength and long-term durability. The spacious operator cabin is designed for maximum comfort, excellent all-around visibility, improved safety, and increased productivity. Machine availability is further enhanced with world-class hydraulic components, a high-torque engine designed to operate efficiently at low RPM, and rugged, well-engineered structures. Easy access and visibility to all service points from ground level make routine maintenance safer, simpler, and faster, helping operators complete work efficiently with minimal downtime.
Performance
The E Series excavators are designed to get more work done, in a short period of time, featuring stronger boom, arm & bucket, more breakout forces, greater hydraulic flow, higher swing torque with liugong’s intelligent power control (IPC) system delivers excellent performance, without excess fuel consumption.
Efficiency
The LiuGong 922E XD is an easy to use, highly efficient, powerful machine with highest output in this class of excavators. The hydraulics have been fine tuned to perfectly match the engine characteristics to deliver astonishing efficiency.
SPECIFICATIONS
| Specification | Value |
|---|---|
| Operating Weight | 22,000 kg |
| Bucket Capacity | 1.0 m³ HD / 1.15 m³ GP |
| Rated Power | 148 hp @ 2,000 rpm |
| Specification | Value |
|---|---|
| Arm Digging Force | 125 kN |
| Bucket Digging Force | 158 kN |
| Specification | Value |
|---|---|
| Model | Cummins 6BTAA5.9 |
| Rated Power | 148 hp @ 2,000 rpm |
| Peak Torque | 626 N·m @ 1,300 rpm |
| Specification | Value |
|---|---|
| Shipping Length | 9,570 mm |
| Shipping Width | 2,800 mm |
| Shipping Height | 3,040 mm |
| Track Shoe Width (STD) | 600 mm |
| Specification | Value |
|---|---|
| System Maximum Flow | 2 × 224 L/min |
| System Pressure | 34.3 / 37.3 MPa |
