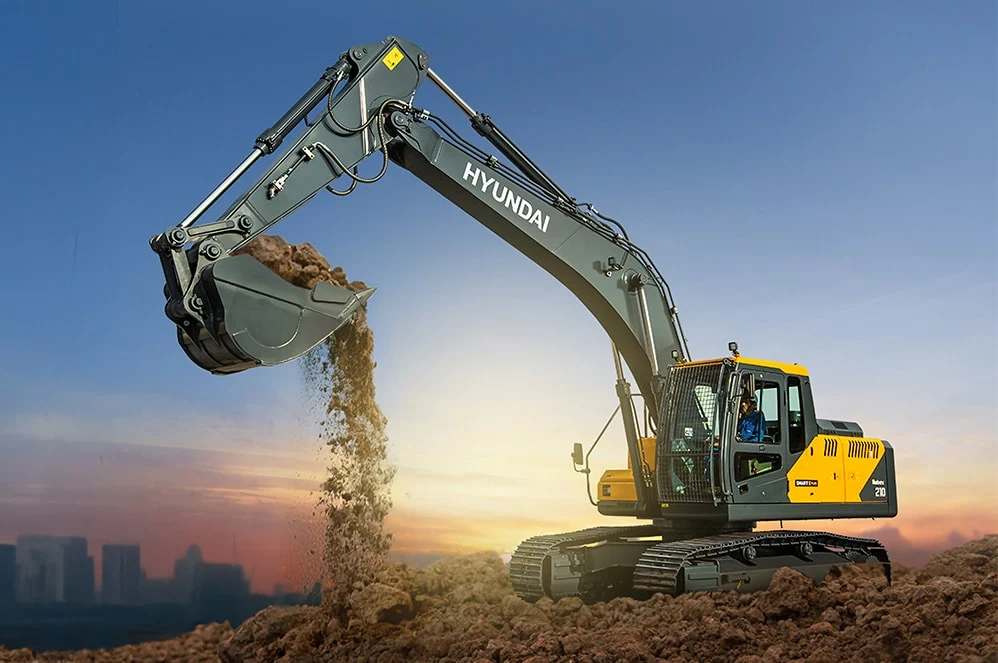

Hyundai 215L Excavator
The Hyundai 215L Excavator is a powerful and dependable heavy-duty machine designed for demanding construction, excavation, earthmoving, and infrastructure applications. Built for consistent performance, the 215L combines strong digging capability, hydraulic efficiency, and a durable design to handle challenging job-site conditions.
The R215L SMART X PLUS Series excavator is designed to deliver enhanced convenience, durability, and reliable performance across demanding applications. Operator comfort and convenience are improved with a removable floor mat for easy cleaning, an integrated Bluetooth FM radio, LED lamps for better visibility in low-light conditions, and a fuel filler pump that simplifies refuelling and reduces downtime. The machine features a strong boom and arm with an improved profile, high-tensile-strength steel construction, steel bearings, and internal baffle plates for increased impact strength. Dimple bushes ensure better grease retention and lubrication, while polymer shims provide enhanced wear and corrosion resistance for longer component life. Additionally, the Automatic Engine Heat Prevention system monitors coolant temperature and automatically reduces engine speed in case of overheating, helping prevent premature engine failure and ensuring dependable machine operation.
OVERVIEW
The R215L SMART X PLUS is engineered for hot, dusty, high-duty cycles typical of mining benches and tough quarries. The challenge here is simple: sustain production in abrasive material and steep faces while keeping temperatures, fuel burn, and component wear under control.
Versus earlier models, it adds stronger upper-structure metallurgy, heavy-duty undercarriage hardware, improved cooling airflow, and an operator interface that lets crews dial in responsiveness for ripping, scaling, or loading. The result is faster passes, confident penetration, and a stable swing on uneven platforms. Perfect for quarry, mine, and material handlers needing reliable mid-size performance with controlled operating costs.
Specifications
| Equipment | Unit | R215L SMART X PLUS |
|---|---|---|
| Engine Model | – | Cummins 6BTAA-5.9C |
| Gross Power | HP @ rpm | 148 @ 2000 |
| Operating Weight | Kgs | 22200 |
| Bucket Range | Cu.M | 0.87 – 1.7 |
| Swing Speed | rpm | 11 |
| Travel Speed, High / Low | km/hr | 5.3 / 3.4 |
| Max. Digging Reach on Ground | mm | 9309 |
| Max. Digging Depth | mm | 6220 |
| Tail Swing Radius | mm | 2845 |
| Bucket Digging Force | kgf. | 15800 |
| Arm Crowd Force | kgf. | 12600 |
| Bucket Capacity | Cu.M | 0.92 GP / 1.05 GP / 1.2 GP / 1.1 HD / 0.95 HD / 0.87 HD / 1.7 Coal |
Frequently Asked Questions
The HD Construction Equipment R215L SMART X Plus mining excavator is used for quarrying, land development, and mining operations where consistent performance and durability are required.
Power: 148 HP Operating weight: ~22,200 kg Bucket capacity: 0.87–1.7 m³
This mining excavator is designed with enhanced cooling, heavy-duty structure, and improved airflow to perform efficiently in hot and dusty environments.
With strong digging force and optimized hydraulics, the R215L mining excavator delivers faster cycle times and better load handling.
